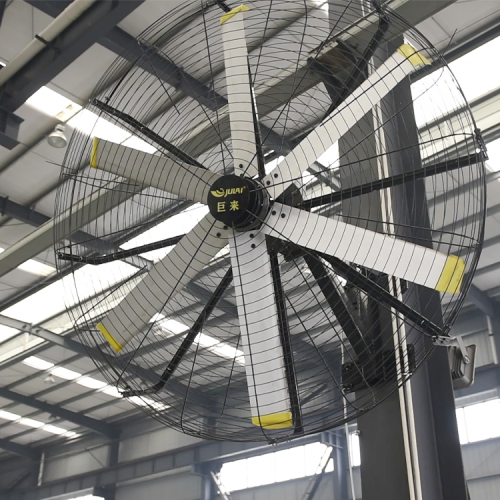

High-Efficiency 2m Oscillating Wall-Mounted Industrial Fan

Introducing our High-Efficiency 2m Oscillating Wall-Mounted Industrial Fan, the perfect solution for spaces where ceiling installation is not feasible. Designed for versatility and performance, this fan offers a long-distance air supply, making it ideal f
Quantity
-
+
Description
Description

Maximize Airflow with Oscillating Wall-Mounted Design

Our GP series 2m wall-mounted industrial fan is engineered for spaces requiring efficient air circulation without the possibility of ceiling-mounted installations. Experience the blend of performance and flexibility.


Key Features & Benefits

1、Efficient and Powerful Air Movement

Equipped with a high-torque, permanent magnet synchronous motor, our fan delivers large air volume across extensive distances, ensuring optimal airflow in every corner of your space.

2、Flexible Installation

Designed to overcome structural limitations, our wall-mounted fan offers an alternative solution that doesn't compromise on performance, making it perfect for a variety of settings.

3、Quiet Operation

Enjoy the benefits of powerful air circulation without the noise. Our fan operates at a low decibel level, maintaining a quiet and comfortable environment for all.

4、Designed for Durability

Constructed with high-performance magnesium-aluminum alloy blades and a robust motor, our fan is built to last, providing reliable service that you can count on year after year.


GP big WALL FAN



AY wall-mounted fans are tailor-made for complex environments that are not suitable for fan hoisting. They can be used in places where ceiling fan installation space is not ideal due to ceiling structure, load-bearing, driving and other limitations.


High Volume Low-Speed Industrial Big Wall Fans Technical Parameters

Model Fan diameter Motor power Max speed Rated voltage Rated current Air supply distance Weight Noise
HVLS-GP2620 2.0m (6.5') 0.75kw 250rpm 220V 2.5A >25m 105.3kg 42dBA
HVLS-GP2620Y 2.0m (6.5') 0.75kw 250rpm 220V 2.5A >25m 116.5kg 42dBA
HVLS-GP2615Y
1.5m (5')
0.75kw
300rpm
220V
2.5A
≥20m 106.5kg
45dBA
HVLS-GP2615
1.5m (5')
0.75kw
300rpm
220V
2.5A
≥20m
95.3kg 45dBA


Advantage

1.energy saving and low consumption, flexible installation;
2.large air volume, long-distance air supply;
3.oscillating head wall-mounted fan, which can rotate 60 degrees left and right for even air supply.






Core accessories


Permanent Magnet Direct Drive Motor
The permanent magnet synchronous motor also has the advantages of high starting torque, short starting time and high overload capacity.It adopts domestic first-class military quality permanent magnet motor, which has the characteristics of low speed, high torque, large air volume, low noise, strong overload resistance, high efficiency and energy saving.




Fan Blade
High-performance magnesium-aluminum alloy material and technology, perfect design, super large air volume,5 airfoil fan blades, high-performance magnesium-aluminum alloy material: 6063-T5, after T5 heat treatment + spraying treatment, the corrosion resistance of the fan blades is enhanced, and the strength of the fan blades is enhanced by the distribution of ribs, completely avoiding Blade tip droop and blade-to-connection fatigue loss.

Control System
1.Protective functions such as ground fault, over temperature, overload, over
current and short circuit;
2.stepless speed regulation, with fault code display;
3.IP55 protection level control box;
4.SVHNEIDERR air switch is installed in the box, and the external three-speed
switching switch is installed.



















Rotation Function
The oscillating wall-mounted fan can rotate 60 degrees left and right to deliver even air. Jolai is the first company to independently develop a large wall-mounted fan with a stable and reliable oscillating function.


INSTALLATION DIAGRAM




APPLICATION SCENARIO











About JuLai (Chongqing) Ventilation Equipment Co., Ltd.——
Empowering Industries with Advanced Ventilation Solutions



Founded in 2013, JuLai (Chongqing) Ventilation Equipment Co., Ltd. stands at the forefront of industrial ventilation technology. Our journey began with a vision to revolutionize the way industries mitigate heat and ensure air quality. Today, we are a global leader, providing cutting-edge, energy-efficient industrial fans and cooling systems designed for a wide range of applications.

1、Innovation at Its Core

At JuLai Ventilation, innovation is our cornerstone. Our state-of-the-art R&D centers and production bases are home to a dedicated team of experts committed to pushing the boundaries of ventilation technology. Our product lineup, including industrial large fans, mobile fans, wall-mounted fans, and water-cooled air conditioners, is a testament to our commitment to innovation, quality, and sustainability.



2、A Legacy of Excellence

Our relentless pursuit of excellence has earned us 17 national patents and numerous accolades, including ISO9001 quality system certification, CE certification, and recognition as a CCTV preferred broadcasting brand. These honors reflect our unwavering commitment to delivering superior products and services.



3、Global Reach, Local Impact

JuLai Ventilation's technology transcends borders, with products and solutions that cater to a diverse global clientele. Our extensive network ensures prompt and efficient delivery worldwide, backed by comprehensive after-sales support. We take pride in our role as a trusted partner to industries worldwide, enhancing efficiency, safety, and comfort.



4、Sustainability and Responsibility

As we look to the future, our mission remains clear: to create environmentally friendly and energy-efficient solutions that contribute to a sustainable planet. Our commitment to quality, innovation, and sustainability drives us to continuously optimize our offerings, ensuring we meet the evolving needs of our customers and the environment.





 FAQ


1、Who Are We?

Response: JuLai (Chongqing) Ventilation Equipment Co., Ltd. is a pioneering industrial fan manufacturer established in 2013. Based in Chongqing, we have grown into a global leader in the ventilation and cooling industry, dedicated to providing innovative, energy-efficient solutions across various sectors. Our vision is to become a world-class manufacturer, creating the most reliable and stable products for a more comfortable environment.



2、How Can We Guarantee Quality?

Response: Our commitment to quality is unwavering. We guarantee the excellence of our products by incorporating high-quality materials, advanced manufacturing processes, and rigorous testing protocols. Our products are backed by 17 national patents, ISO9001 quality system certification, and CE certification. We partner with well-known brands for components to ensure durability and performance, reflecting our dedication to quality and innovation.



3、What Can You Buy From Us?

Response: From JuLai Ventilation, customers can purchase a wide range of industrial ventilation products, including large industrial fans, mobile fans, wall-mounted fans, column fans, water-cooled air conditioners, and negative pressure fans. Our products are designed to meet the ventilation and cooling needs of various industries, ensuring energy efficiency, high performance, and long service life.



4、Why Should You Buy From Us Not From Other Suppliers?

Response: Choosing JuLai Ventilation means partnering with a company that stands at the forefront of technology and innovation. Our unique advantages include a strong R&D focus, a comprehensive product lineup tailored to diverse needs, and a commitment to sustainability. Our accolades, such as being a CCTV preferred brand and holding numerous patents, underscore our market leadership. Moreover, our global reach and exceptional customer service ensure that we are not just suppliers but partners in your success.



5、What Services Can We Provide?

Response: JuLai Ventilation offers an extensive suite of services to support our clients worldwide. This includes but is not limited to, customized product solutions, prompt global logistics and delivery, comprehensive after-sales support, and 24 customer service. Our services are designed to ensure customer satisfaction from pre-sale consultation to post-sale support, including installation guidance and maintenance services.


Discover the future of industrial ventilation with JuLai Ventilation's award-winning technology and products. Explore our innovations and join us in creating a more comfortable environment today!
